STEPPEX High Speed
[ pictures below ]
Re-conditioned quilting machines are devices
after full regeneration which refers to exchange of all wearing parts into new
ones and re-conditioning of whole machine's rest ( as trunk or other massive
parts ). Apat of this such machines are equipped with new fittings like working
bridge for staff, winding device with electronically controlled
tension of quilted fabric, spoolbox and others.
This is because machines of the category - from
user's point of view - are simply like new, and as such - get 1 year warranty.
Programmable computer driven machines are equipped with ( also brand new )
excellent working computer servo drive ELTRON 9.8 with multilanguage software.
- Model: Steppex High Speed 100" 3NR ELTRON 9.8
- working width: 100" = 256 cm
- three needle bars!
- 100 needles in each needlebar ( row ); 1" distance between needles (
- distance between bars ( rows ) - 3"
- carriage movement ( stroke ): 350 mm
- maximum working width: up to 286 cm ( 256 cm + carriage stroke )
- machine re-conditioned
- brand new computer servo drive ELTRON 9.8
- fully programmable ( patterns/designs up to 360 deg.; easy method of
creating new designs )
- multilanguage software ( English, German, Italian, French, Polish!
- 220 pre-programmed standard designs
- practically unrestricted quantity of supplementary designs in memory
- touch sensitive screen
- maximum working speed - 600 rotation pre minute
- top thread breaking controller
- quick start / stop
- automatic needle positioning
- handbox controller for changing machine' working modes and jogging left/right
- 1 year warranty
- winding device ( electronically controlled tension of quilted
- working bridge
- set of ( emergency ) stop buttons installed on machine
- set of 100 shuttles no 10
- set od 200 needles
- 25 threadhooks + 2 hook' handles
- QEdit software for creating / editing designs; ability of importing
embroidery patterns ( eg. from Saurer SLC )
- full set of factory doccumentetion ( manuals, instructions; in
English or German )
- delivery time - up to 12 weeks since order
- longitudinal cutting device - 8500 eur
- vertical cutting device ( panel cutter ) - 15000 eur
- Plexiglass curtain as needlesafety with emergency stop while open - 1800
- optional optical system SMART - upper thread break control- for 50 threads
- 4800 eur

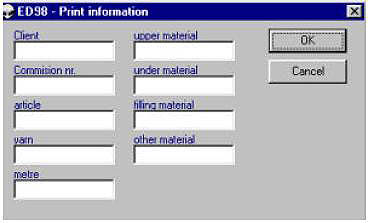

Above: convenient graphical interface facilitates programming
of new designs and changing existing ones.
Further details on request.
You can also order computerised or cam
driven multineedle quilting machine of any other working width ( or with 2
needle bars ). Standard working width serie: 59", 64", 74", 84",
100", 110", 120", 130".
